Single/Dual/ Triple(FDD) Band 1/8 Distributed Repeater

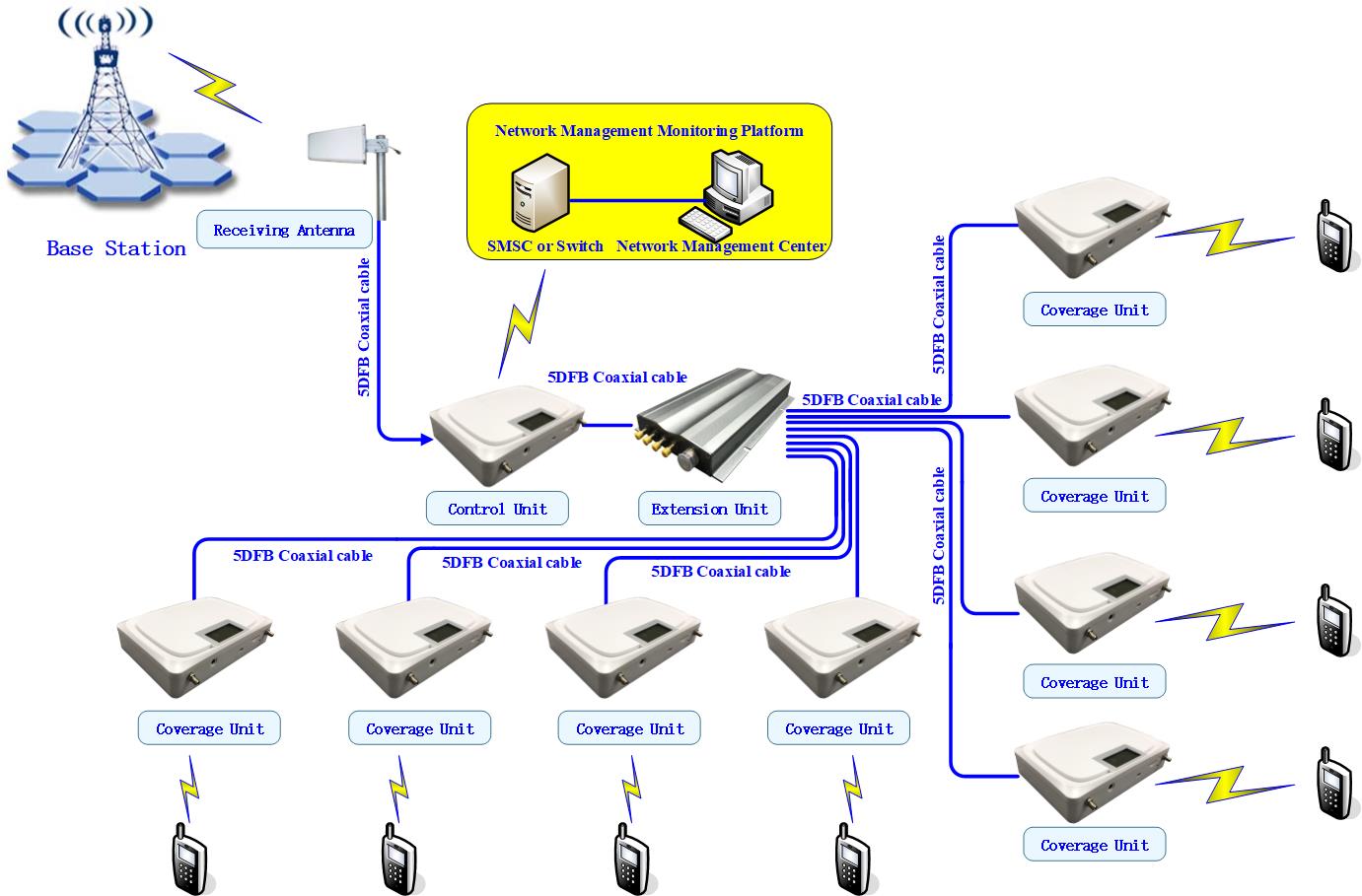

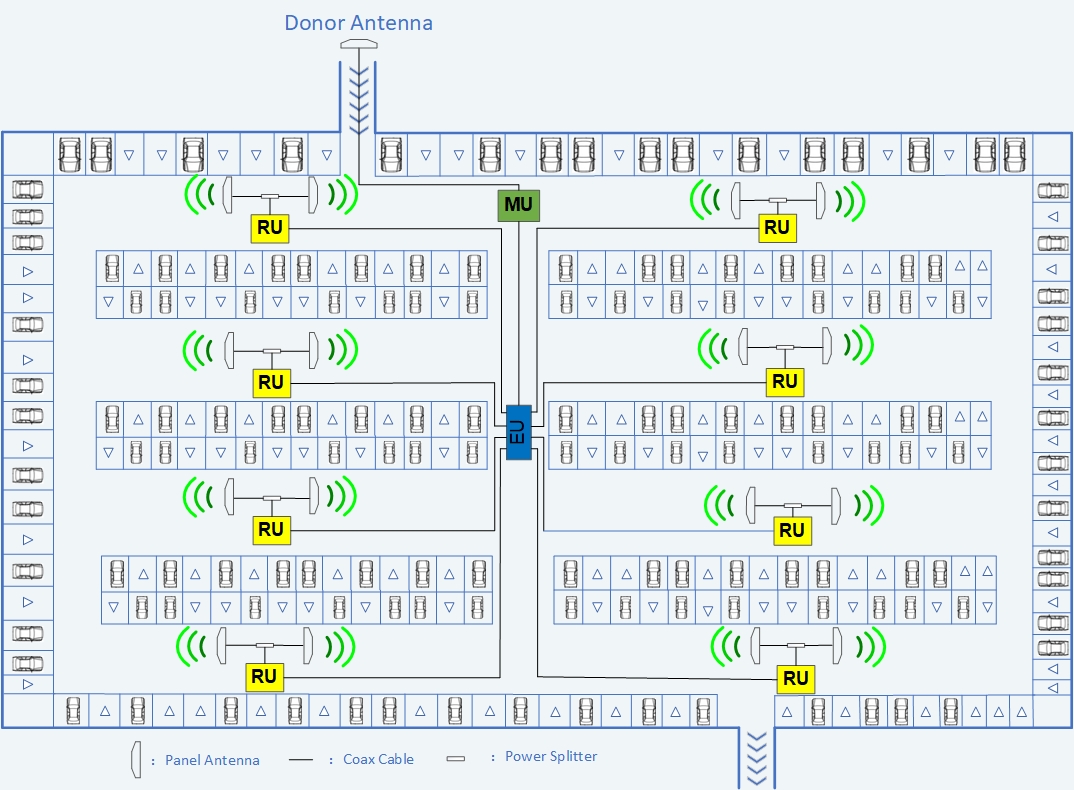

The micro distributed system consists of three-tier devices: MU, EUs, and RUs. The MU receives wireless signals from outdoor macro base stations, while the EUs connect to multiple RUs for signal extension and distributed coverage. The One-to-Eight EUs supports efficient and extended signal distribution, making it ideal for scenarios such as underground parking lots, supermarkets, entertainment venues, and ground-floor shops
Networking
Performance Index
Item Parameter
single  band  DR-A02S01E(B5)
DR-A05S01E(B8)
DR-A09S01E(B3)
DR-A12S01E(B1)
dual  band  DR-B02S01E(B8,B3)
DR-B03S01E(B5,B3)
DR-B07S01E(B3,B41)
DR-B09S01E(B3,B1)
DR-B10S01E(B3,N78)
triple(FDD) band  DR-C01S01E(B8,B3,B1)
DR-C03S01E(B5,B3,B1)
Maximum output power 17dBm/20dBm
Maximum Gain 115dB/120dB
Digital broadband frequency selection Not supported
Carrier frequency selection Not supported
Network Management and Monitoring Optional

Product Features
Low Signal Insertion Loss
Plug-and-Play
Minimal Construction
Wireless Transmission

Applicable Scenarios
  • Ground-Floor Shops
  • Supermarkets
  • Underground Parking
