Single/Dual/ Triple(FDD) Band 1/4 Distributed Repeater

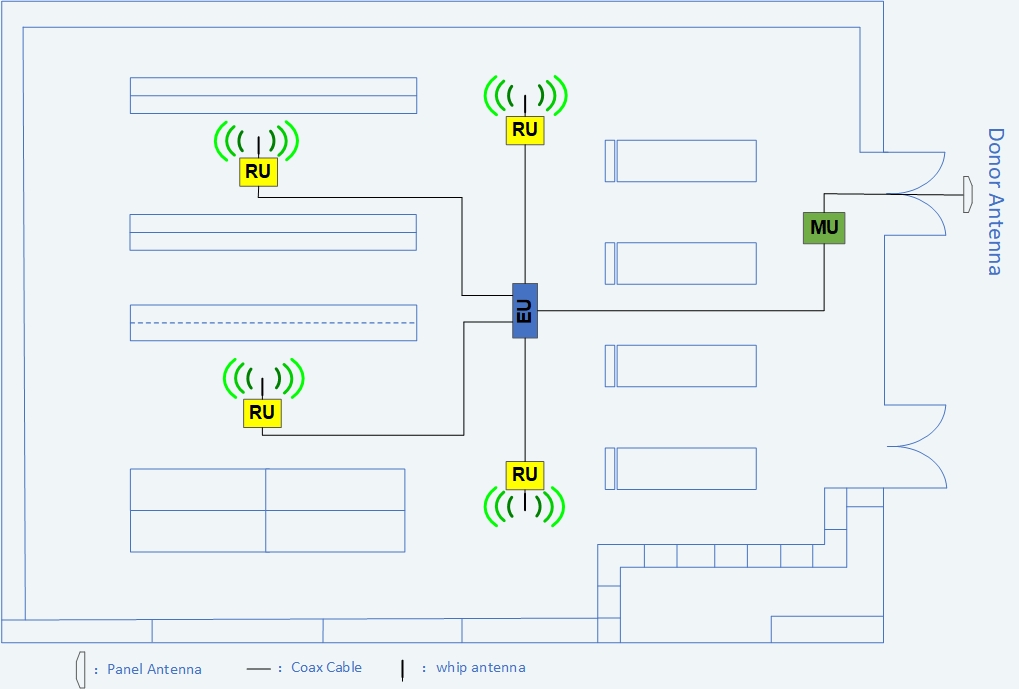

The micro distributed system consists of three-tier devices: a control unit, expansion units, and coverage units. The main unit receives wireless signals from outdoor macro base stations, while the expansion units connect to multiple coverage units for signal extension and distributed coverage. The One-to-Four Expansion Unit supports efficient signal distribution, making it suitable for coverage in scenarios such as underground parking lots, supermarkets, entertainment venues, and ground-floor shops

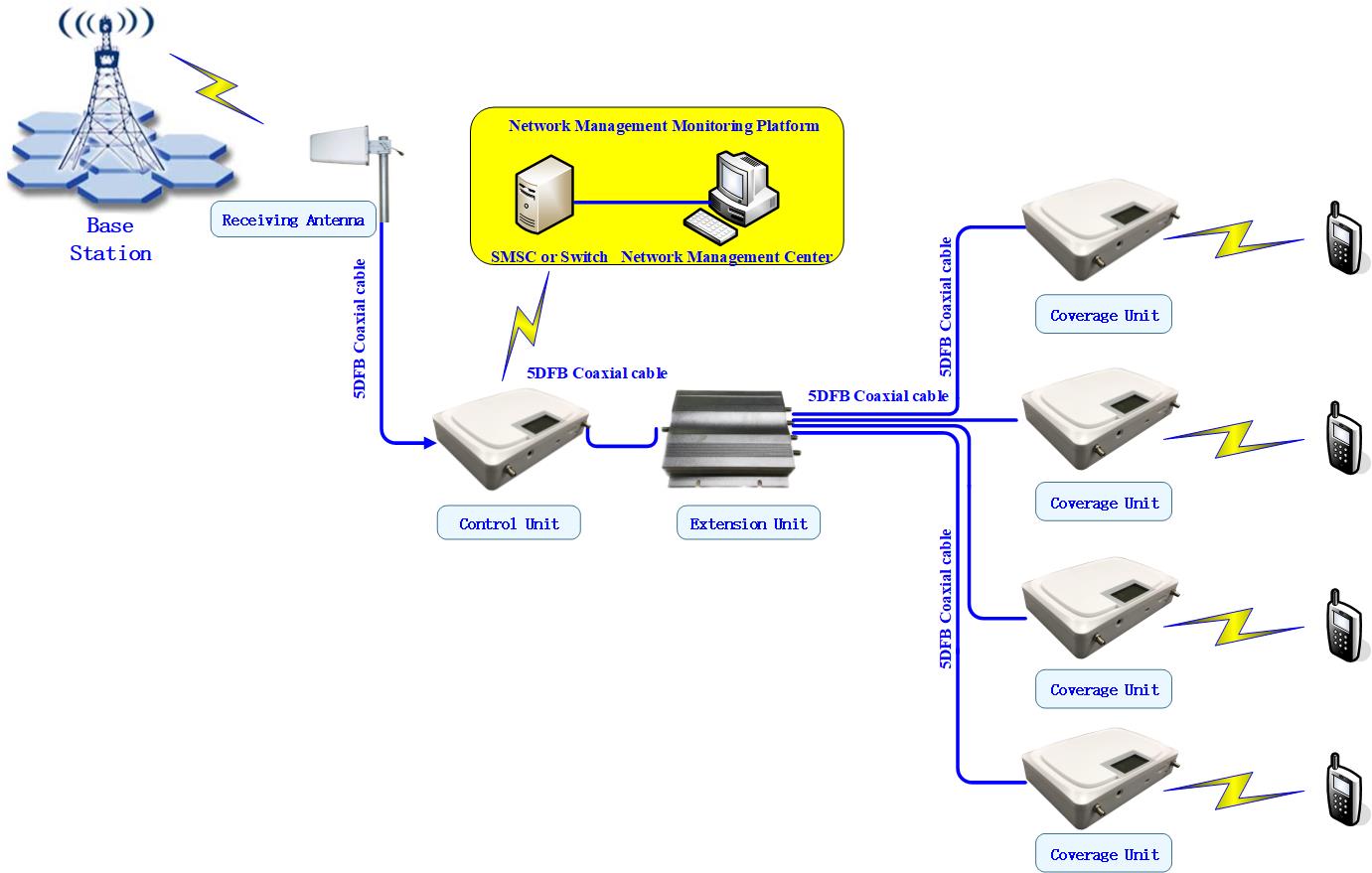

Networking
Product Features
Low Signal Insertion Loss
Plug-and-Play
Minimal Construction
Wireless Transmission
Applicable Scenarios
  • Ground-Floor Shops

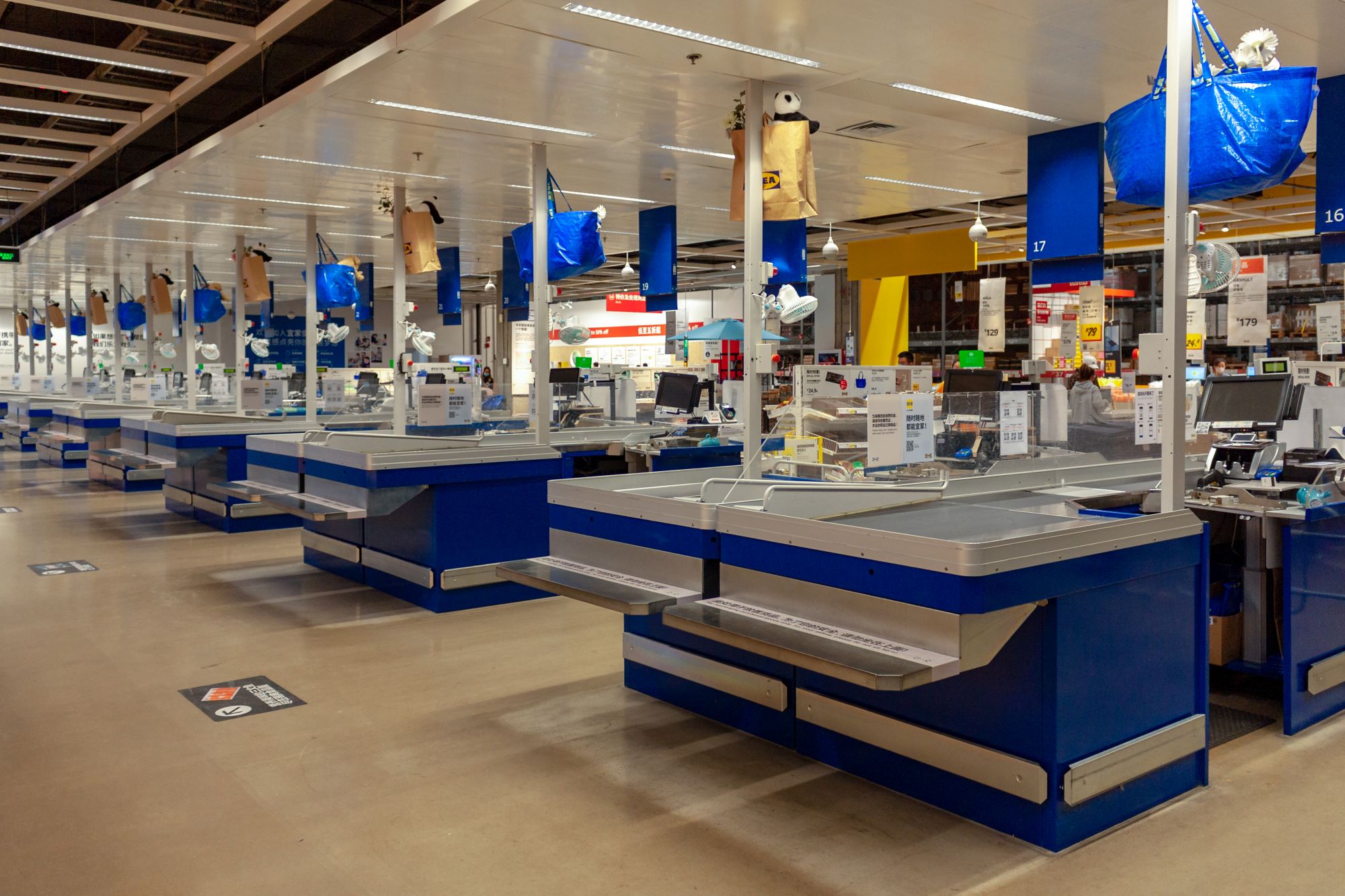

  • Supermarkets
  • Underground Parking Lots
Performance Index
Item Parameter
single  band  DR-A02S01F(B5)
DR-A05S01F(B8)
DR-A09S01F(B3)
DR-A12S01F(B1)
dual  band  DR-B02S01F(B8,B3)
DR-B03S01F(B5,B3)
DR-B07S01F(B3,B41)
DR-B09S01F(B3,B1)
DR-B10S01F(B3,N78)
triple(FDD) band  DR-C01S01F(B8,B3,B1)
DR-C03S01F(B5,B3,B1)
Maximum output power 17dBm/20dBm
Maximum Gain 115dB/120dB
Digital broadband frequency selection Not supported
Carrier frequency selection Not supported
Network Management and Monitoring Optional
